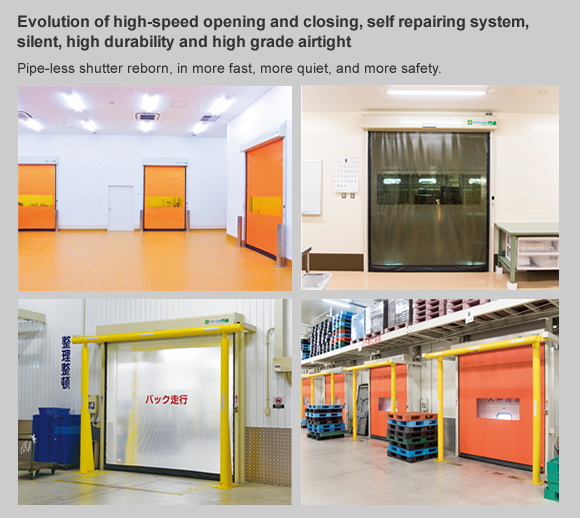

Sheet out by collision is automatically return to the rails easily

Collision by lift and truck during the operation, the sheet will stop a while and slowly going up (0.5m/s) automatically return into the rails. The structure designed to convenience in case of power failure, woman can also easily get out by simply lifting the sheet.

※Attaching the back up power supply could secure the passage (optional)

Extra opening speed 3.2m/s , Safety closing speed 0.7m/s

Extra high speed

the operation of start up sensor or switch will be ran by machine usually driving shorten opening time , efficiency operation is developed concurrently with the improvement of preventing of insect, dust, outside air and energy saving

※Opening and closing speed you can change according to the application.Adjustable speed, please refer to the following specification.
Reversing opening for safety
middle speed phototube sensor detecting, scan going up except the lowest position

low speed detect touching or bear while machine is running

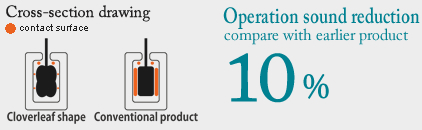

Quietness by MONBAN tube

Silent

Sheet both sides using MONBAN tube instead of conventional fastener for more silent operation and prevent damage.

※Opening and closing speed you can change according to the application.Adjustable speed, please refer to the following specification.




Quietness by MONBAN tube

High grade airtight

Air tight seal attached to the top frame with high insect and dust proof effect, and ideal for a variety of clean environment.



※circulating air at 10Pa
※Carried out testing at JIS A 1516 indoor airtight examination center
※Our products can be any number of airtight seals.
※Wind pressure performance can be different depending on the size
※Air tight seal attached on the top frame only.

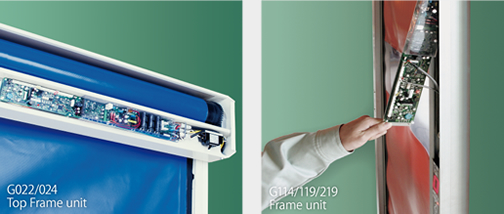

Built-in controller, easy to move


Controller built in the top frame or side frame, saving wiring and space, Easy to move or relocate

※G062/GF17/22 are separate controller placement

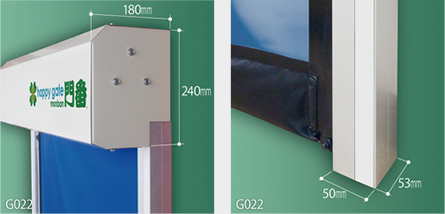

Compact design


40% compacter than the conventional model Suitable for the entrance of the factory and office


Separate controller

Please use separate controller if install to the location where the influence of water is assumed.
